TL120 Valve seat boring machine for engine rebuild

FOB Reference Price:Get Latest Price
US $26,000-27,000 / Unit | 1 Unit/Units TL120 Valve seat boring machine for engine rebuild (Min. Order)
Supply Ability:
50 Unit/Units per Year TL120 Valve seat boring machine for engine rebuild
Port:
Shanghai Port, China
Report Suspicious Activity
Overview
Quick Details
Condition:
New, New
CNC or Not:
Normal
Production Capacity:
High
Place of Origin:
Liaoning, China (Mainland)
Brand Name:
JORI
Model Number:
TL120
Voltage:
220V/380V, 220v / 380v
Power(W):
2.2kw
Dimension(L*W*H):
1750*1150*2200mm
Weight:
1500kg
Certification:
ISO CE
After-sales Service Provided:
Engineers available to service machinery overseas
Product type:
Valve seat boring machine for engine rebuild three column
Packaging Details:
wooden cases
G.W::
1500kg
Spindle roration:
0-1000rpm
Color:
Red
Machine capacity:
16-120mm
Spindle travel:
200mm
Name:
Valve seat boring machine for engine rebuild three column

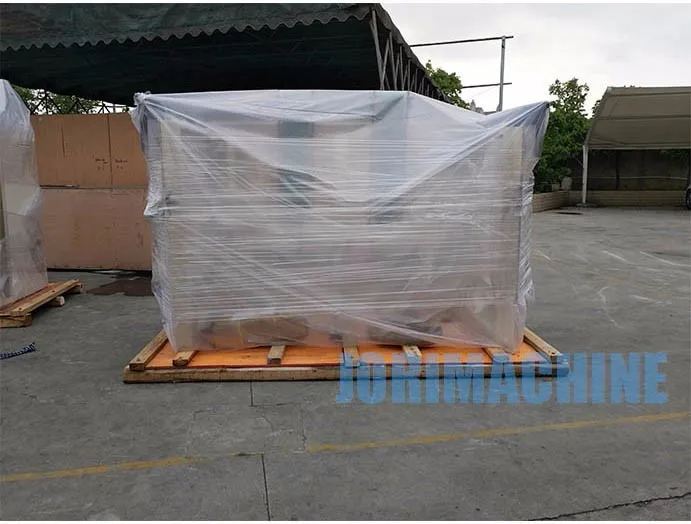

Packaging & Delivery
Packaging Details
Wooden case, Seaworthy package
TL120 Valve seat boring machine for engine rebuild
Delivery Time
60 days after receiving your 30% downpayment
Product Description

Product Application

Features :
The TL120 offers the patented new Triple Air-Float Automatic Centering system and its high torque and powerful motorspindle. Very accurate, all-purpose machine to cut valve seats and ream valve guides. Extremely versatile this machine will cut valve seats from the smallest to the biggest diameter. Thanks to its lightweight floating system. It will machine cylinder heads of any size from micro-engines up to big stationary engines.

Featuring a machine bed structure optimized by static and dynamic calculation, with a modern, modular and functional design, it can accommodate either the tilting fixture (+42deg to -15deg) or the hydraulic 360deg roll-over fixture with lateral up-and-down system.

The TL120 Power has a benefit of air floating table bars. Thus adding faster setup time and effortless shifting of any size cylinder head. This feature decreases operator fatigue and increases productivity.

*Machining capacity .55"/16mm to725"/120mm.

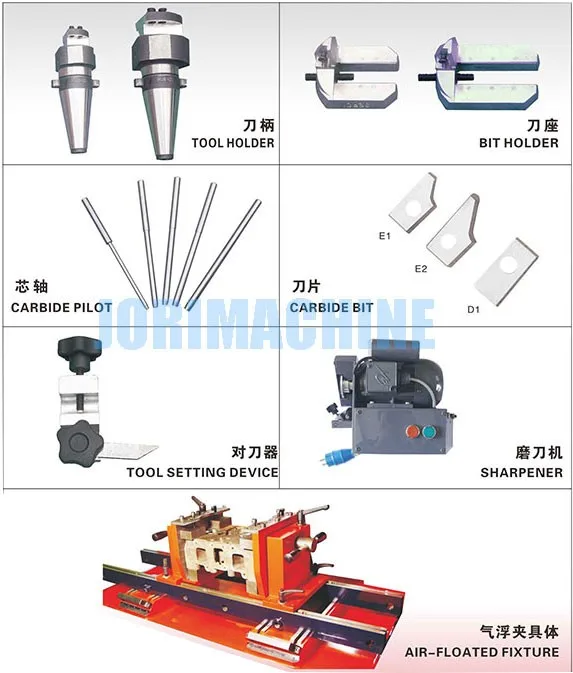

*Fitted with the new tooling that decreases the cutting force by 30%, this machine will cut the hardest seats.
*Patented lightweight workhead: built-in spindle motor and triple air-float automatic entering system. Minimal workhead inertia and maximal floatation for unmatched centering sensitivity.
*Build-In spindle motor. Broad torque ratings from lowest RPM.
*Fully integrated spindle motor: Infinitely variable spindle speed, 0 to 1000r.p.m., with sensorless Vector Flux Control in open loop (extremely broad torque ratings from lowest r.p.m.). Digital spindle rotation read out.

Main Specification:
TL120
Machining capacity
16-120mm
Work head displacement                Lengthwise
990mm
                                                   Crosswise
40mm
                                                   Sphere cylinder travel
9mm
Max. spindle inclination
5 degree
Spindle travel
200mm
Spindle motor power
2.2Kw
Spindle roration
0-1000rpm
Power supply
380V 50Hz 3 Ph or
220V/60HZ 3Ph
Air flow
6 Bar
Max. Air
300L/min
Level of noise at 400rpm
72Dba
Technical features
TL120
Max. length of the cylinder head
mm/inch
Unlimited
Max. width of the cylinder head
mm/inch
500/19.7
Max. height of the cylinder head
mm/inch
450/17.7
Crosswise work piece tilting
degrees
+45~-15
Maximum table horizontal travel(mm)
mm/inch
160/4.3
Machining capacity dia.(min-max)
φmm/inch
16/120/0.6-4.7
Work head displacement
Lengthwise
mm/inch
990/39
Crosswise
mm/inch
40/1.6
Sphere-Cylinder travel
mm/inch
9/0.4
Spindle
Max. spindle incination
degrees
5
Spindle Travel
mm/inch
200/8
Power of the spindle
kw
2.2
Spindle rotation speed
rpm
0-1000
Alinebtations

Electric supply
380v/50Hz 3Ph or 220v/60Hz/3Ph
Air pressure
bar/psi
6/87
Max. air flow
1/min/cfm
300/11
Level of noise at 400 RPM
dba
72
Level of noise at 1200 RPM
dba
82
Net weight(approx.)
kg/1bs
1500/3300
Machine space requirements

Length
mm/inch
1750/68.9
Width
mm/inch
1150/45.3
Height
mm/inch
2200/86.6
Related Products

T8590A motorcycle cylinder boring machine

91.8% Response Rate

Air float Auto centering Valve seat boring machine TQZ8560

91.8% Response Rate

Line boring Machine T8120x20

91.8% Response Rate

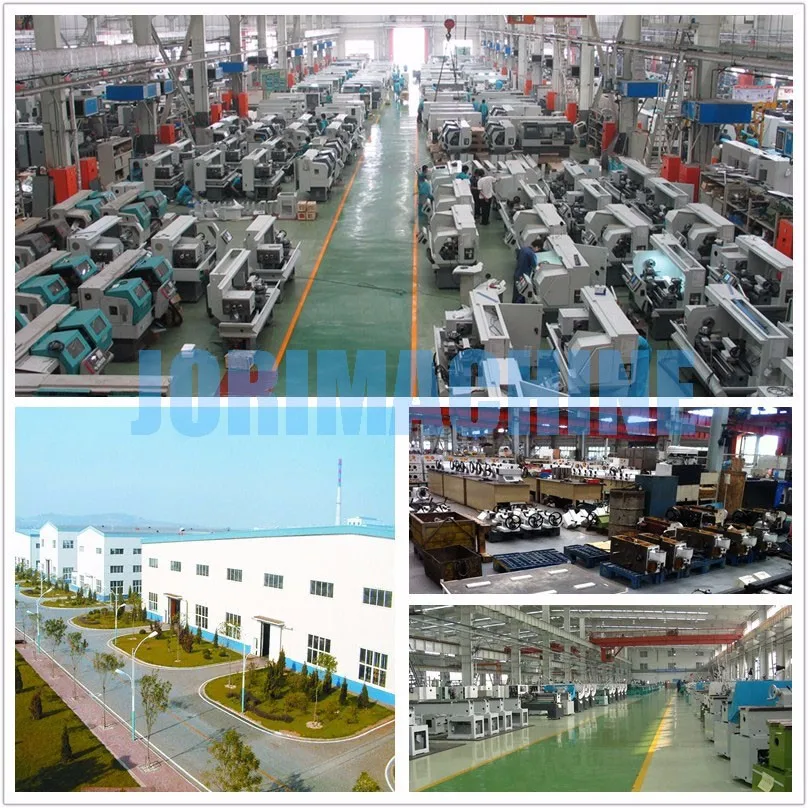

Our Company
Packing & Delivery

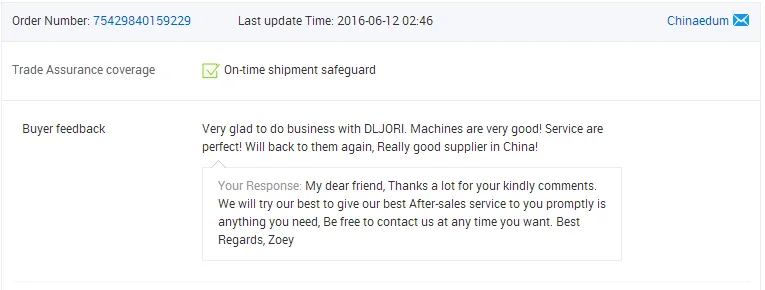

Buyer Feedback
