FG500 Cheaper Flywheel grinding machine with good quality re-grinding the automobile engine flywheel disk clutch friction

FOB Reference Price:Get Latest Price
$4,800.00 - $5,000.00 / Unit | 1 Unit/Units FG500 Cheaper Flywheel grinding machine with good qualityregrind (Min. Order)
Shipping:
Support Sea freight
Contact Supplier
Loading...
Report Suspicious Activity
Overview
Quick Details
Condition:
New, New
Type:
Surface Grinding Machine
Place of Origin:
Liaoning, China
Brand Name:
JORI
Model Number:
FG500
Voltage:
220V/380V
Certification:
no
CNC or Not:
Normal
Dimension(L*W*H):
1200x800x1750mm
Table diameter:
450mm
The max distance if flywheel:
500mm
Functions:
grinding
Packaging Details:
wooden cases
The max distance from spindle to table:
200mm
Key words:
Flywheel grinding machine
Color:
Red
Weight:
600/800kg, 600kg
Name:

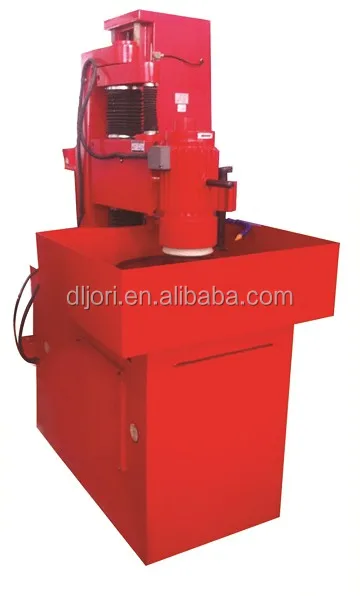

FG500 Flywheel grinding machine
After-sales Service Provided:
Engineers available to service machinery overseas
Max. Grinding Length:
200mm
Power(W):
0.12kw
Max. Grinding Diameter:
500mm
Supply Ability
Supply Ability:
50 Unit/Units per Year FG500 Cheaper Flywheel grinding machine with good qualityregrind
Packaging & Delivery
Packaging Details
Wooden case, Seaworthy package
FG500 Cheaper Flywheel grinding machine with good qualityregrinding the automobile engine flywheel disk clutch friction
Port
Shanghai Port, China
Lead Time :
25 days after receiving your 30% downpayment
Product Description

Product Application

Features:
is mainly used for regrinding the automobile engine flywheel disk and clutch friction plate in repair units and network points to carry out automobile maintenance & repair service.

Model
FG500
Table Diameter
450mm
The Max diameter of repairing Flywheel
500 mm
The Max Distance from spindle to table
200mm
Rotational Speed of Grinding wheel
2800r/min
The rotational speed of table
17/34r/min
The motor of grinding wheel
3 kw/400V/50HZ
The motor of table
1400/700r/min 0.4/0.22KW/400V/50HZ
Cooling pump
0.12KW
Overall dimensions
1200X800X1750(mm)
