Conventional Manual Horizontal Universal Lathe Machine

  • 1 - 7 Units
    $13,000.00
  • >=8 Units
    $8,000.00
Max. Swing Diameter (mm):
500
Spindle bore:
82
Customization:
Please must contact the seller before order (Min. Order: 1 Units)
Customized logo (Min. Order: 1 Units)
Samples:
$10,000.00 /Unit | 1 Unit (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
After-sales Service Provided:
Online support, Video technical support
Place of Origin:
Liaoning, China
Brand Name:
JORI
Model Number:
CS6250B,CS6266B,CQ6280B,CS6250C,CS6266C,CQ6280C
Condition:
New
Dimension(L*W*H):
2382*9751230
Type:
Horizontal
Certification:
CE ISO
Voltage:
3 Phase 380V 50HZ
Range of Spindle Speed(r.p.m):
9-1600
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant, Home Use, Retail
Key Selling Points:
Easy to Operate
Weight (KG):
2850
Max. Swing Diameter (mm):
500
Max. Length of Workpiece (mm):
3000
Max. swing dia. over bed:
500mm
Max. travel of quill:
150
Spindle Speed Ranges:
24 steps 9-1600
Max swing dia in gap:
710mm
Max swing dia over slides:
300mm
Spindle bore diameter:
82mm
Max. X travel:
145
Max. Z travel:
320
X feed range:
93 kinds 0.028-6.43
Z feed range:
93 kinds 0.012-2.73
CNC or Not:
Normal
Automatic Grade:
Semi-automatic
Power (kW):
7.5
Supply Ability
Supply Ability:
50 Unit/Units per Month Dalian engine gap bed lathe machine metal lathe price
Packaging & Delivery
Packaging Details
Wooden case, Seaworthy package
Dalian engine gap bed lathe machine metal lathe price
Please must contact the seller before placing an order
Port
Dalian Port, China
Product Description

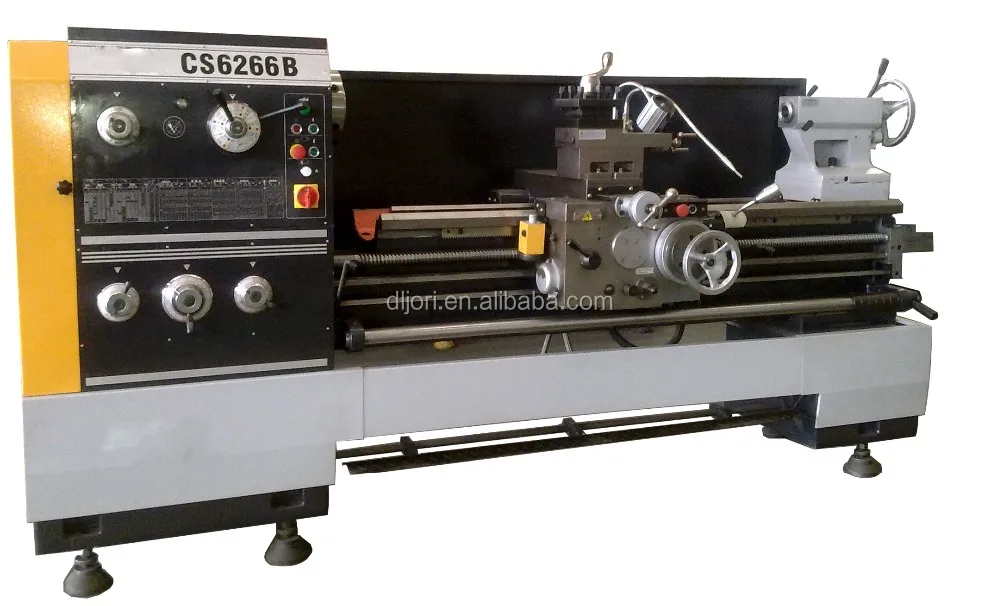

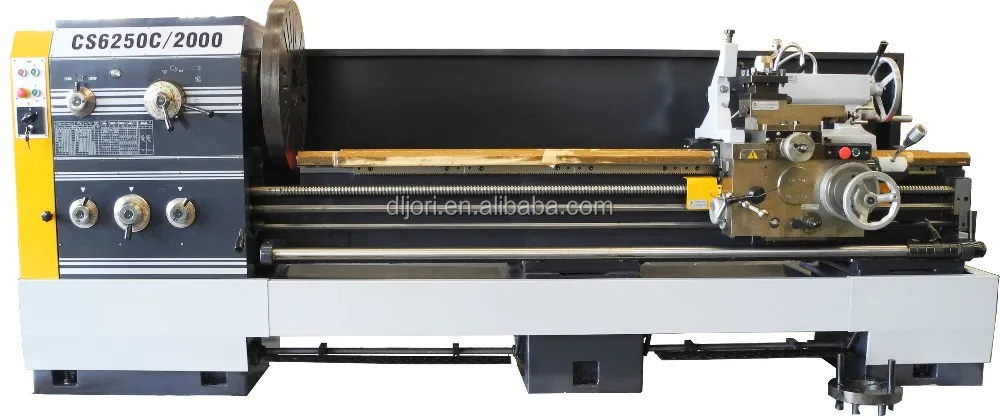

CS6250B CS6250C Horizontal Gap Bed Lathe Machine

Characters:
1. It Can perform internal and external turning, taper turning, end facing, and other rotary parts turning;
2. Threading Inch, Metric, Module and D.P.;
3. Perform drilling, boring and groove broaching;
4. Machine all kinds of flat stocks and those in irregular shapes;
5. Respectively with through-hole spindle bore, that can hold bar stocks in larger diameters;
6. Both Inch and Metric system are used on these series lathes, it's easy for people from different measuring systems countries;
7. There are hand brake and foot brake for users to choose;
8. These series lathes operate on power supply of different voltages (220V、380V、420V) and different frequencies (50Hz/60Hz).

Specification:

SPECIFICATIONS
UNIT
CS6240
CS6250B
CS6266B
CQ6280B
Capacity
Max. swing dia. over bed
mm
Φ400
Φ500
Φ660
Φ800
Max. swing dia.in gap
mm
Φ630
Φ710
Φ870
Φ1000
Max. swing dia. over slides
mm
Φ220
Φ300
Φ800
Φ560
Max. workpiece length
mm
750/1000/1500/2000/3000
1000/1500 2000/3000
2000/3000
Spindle
Spindle bore diameter
mm
Φ52
Φ82
Type of spindle nose
no
CS6240:ISO 702/III NO.6 bayonet lockothers:ISO 702/II NO.8 com-lock type
Spindle speed
rpm
24 steps 9-1600
24 steps
8-1400
Spindle motor power
KW
7.5
Tailstock
Diameter of quill
mm
Φ75
Φ90
Max. travel of quill
mm
150
Taper of quill (Morse)
MT
5
Turret
Tool O.D. size
mm
25X25
Feed
Max. X travel
mm
145
Max. Z travel
mm
320
X feed range
mm/r
93 kinds 0.028-6.43
Z feed range
mm/r
93 kinds 0.012-2.73
Metric threads
mm
48 kinds 0.5-224
Inch threads
t.p.i
48 kinds 72-1/4
Module threads
πmm
42 kinds 0.5-112
Diametric pitch threads
t.p.i.π
42 kinds 56-1/4
Other
Cooling pump motor power
KW
0.06
Length
mm
2382/2632/3132/3632/4632
Width
mm
975
1050
1340
Height
mm
1230
1350
1430
Weight
Kg
1795/2050
2250/2450/2850
2050/2100
2300/2500/2900
2400/2600
2800/3000
3300/3700

Standard Accessories:

3 Jaw Chuck and Adapter,
4 Jaw Chuck and Adapter
Drive Plate
Face Plate
4-Way Tool Post
Steady Rest
Follow Rest
Drive Plate
Foot Brake
Full-Length Splash Guard ( Short Type on 3M Lathe )

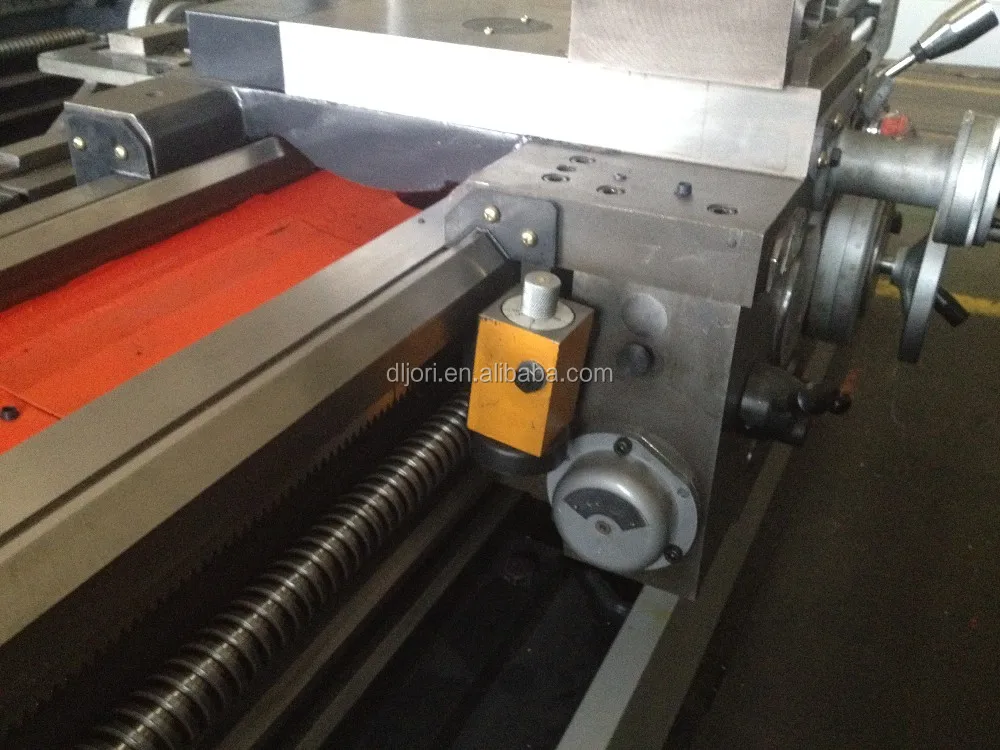

Longitudinal Mechanical Stop ( without on 3M Lathe )
Halogen Light.

Optional Accessories:

Taper Turning Attachment
Thread Chasing Dial
Quick Change Tool Post ( American Type ) / ( European Type )

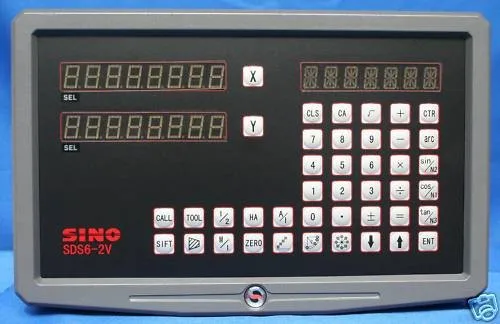

SINO 2 Axis DRO

SINO 3 Axis DRO

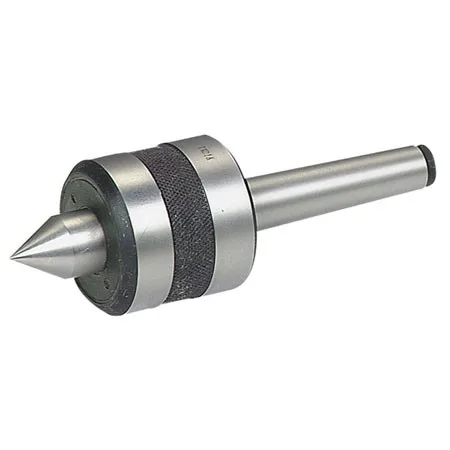

Live Center
